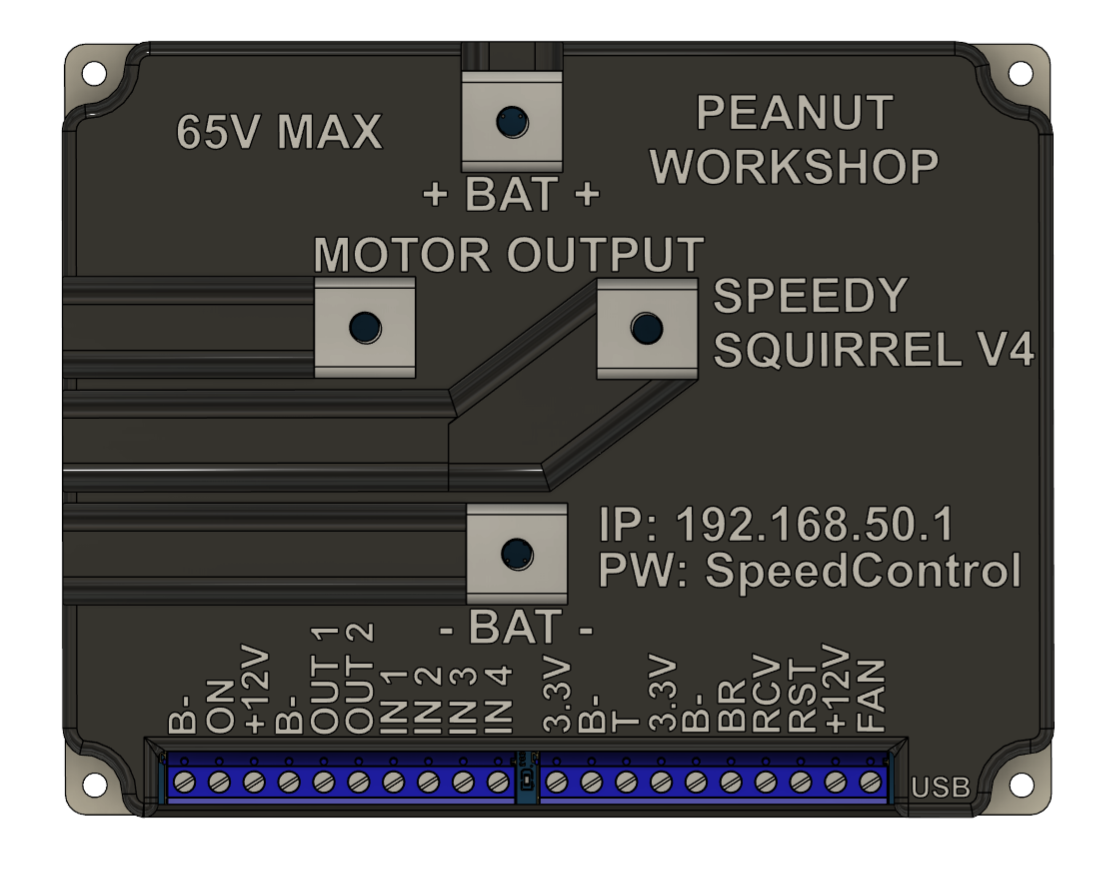

Speedy Squirrel 65VDC 80A 4800 Watt Single Channel Full H-Bridge Brushed Speed Controller V4

• Single channel brushed motor driver (Specifically designed for 550, 775, 887, 895, MY1016, MY1020 Brushed DC motors)

• 10 - 65VDC input voltage (Up to 15S (15 Series Lithium Cells), some 60V Li-Ion batteries are 16S, those will hit the over voltage protection circuit and disable the controller and could result in permanent damage)
  DO NOT USE A VOLTAGE REGULATOR OR DC/DC CONVERTER ON BATTERY INPUT

• 80A continuous per motor output

• Wi-fi Access Point for configuration, monitoring, and Diagnostics

• Variable Throttle Input

• Variable Brake Input

• Two forward speed limits and one reverse speed limit

• Can configure Boost button and Launch Control

• Applies Brakes when throttle is released (Can be disabled in web app)

• 12VDC 8A accessory output (Regulates to 12VDC when input is over 12VDC, tracks input voltage when under 12VDC)

• RC Receiver Input (Standard hobby grade remote receivers that work on 3.3V)

• 2 general purpose outputs (for use with 12V supply)

• +12V Fan output, PWM fan output, can be controlled based on controller internal temp

*** Caution regarding voltage regulators.
Using a battery with a voltage exceeding 65V and a voltage regulator to supply the speed controller could damage the controller or result in a significant voltage drop during initial motor startup causing the speed controller to reset and potentially be permanently damaged.
