Junior Squirrel 35VDC 50A 1750 Watt Single Channel Full H-Bridge Brushed Speed Controller

$89.00 $99.00

  • Single channel brushed motor driver (Specifically designed for two 550, 775, 887, 895, and 997 Brushed DC motors in parallel)

  • 12 - 35VDC input voltage (Up to 8S (8 Series Cells) Lithium battery packs (12V Lead Acid, 12V LiFePo4,18/20V 5S Lithium Ion Drill Batteries, 6S Li-Po, 24V Lead Acid, 24V LiFePo4, 8S Li-Po)
    DO NOT USE A VOLTAGE REGULATOR OR DC/DC CONVERTER ON BATTERY INPUT

  • 50A continuous output

    • 150A Burst Limit (2 seconds)

    • 300A Short Circuit Limit (20 us)

  • Wi-fi Access Point for configuration, monitoring, and Diagnostics

  • Variable Throttle Input

  • Variable Brake Input

  • 4 Configurable inputs

    • Two forward speed limits and one reverse speed limit

    • Launch Control

    • Boost function (Replaced high speed)

    • Smart inputs can be connected to B- to activate or connected to any voltage between 12V and 35V

  • Supports auto regenerative braking, single pedal mode

  • RC Receiver Input (Standard hobby grade remote receivers that work on 3.3V)

  • Single channel brushed motor driver (Specifically designed for two 550, 775, 887, 895, and 997 Brushed DC motors in parallel)

  • 12 - 35VDC input voltage (Up to 8S (8 Series Cells) Lithium battery packs (12V Lead Acid, 12V LiFePo4,18/20V 5S Lithium Ion Drill Batteries, 6S Li-Po, 24V Lead Acid, 24V LiFePo4, 8S Li-Po)
    DO NOT USE A VOLTAGE REGULATOR OR DC/DC CONVERTER ON BATTERY INPUT

  • 50A continuous output

    • 150A Burst Limit (2 seconds)

    • 300A Short Circuit Limit (20 us)

  • Wi-fi Access Point for configuration, monitoring, and Diagnostics

  • Variable Throttle Input

  • Variable Brake Input

  • 4 Configurable inputs

    • Two forward speed limits and one reverse speed limit

    • Launch Control

    • Boost function (Replaced high speed)

    • Smart inputs can be connected to B- to activate or connected to any voltage between 12V and 35V

  • Supports auto regenerative braking, single pedal mode

  • RC Receiver Input (Standard hobby grade remote receivers that work on 3.3V)

Throttle or Brake Pedal
Throttle or Brake Pedal
$17.00
Pedal Adapter Plate 20250915_153039.jpg
Pedal Adapter Plate
$10.00
Color:
Dream Fleet Zip Hoodie Dream Fleet Zip Hoodie Dream Fleet Zip Hoodie Dream Fleet Zip Hoodie Dream Fleet Zip Hoodie Dream Fleet Zip Hoodie Dream Fleet Zip Hoodie Dream Fleet Zip Hoodie
Dream Fleet Zip Hoodie
$40.00
Size:
887 18V Brushed Motor Solder Connections AdapterView.JPG TopView.JPG
887 18V Brushed Motor Solder Connections
from $40.00
Mounting:

Product Overview

The Speedy Squirrel (DRV15035BD) is a motor controller designed for DIY applications requiring a single high power brushed motor outputs.  With enough standard I/O to fit the needs of many projects.

What Comes in the Box?

The motor controller and mounting hardware to secure it. This is a motor controller designed for DIY projects, since each project is unique no additional materials are provided.

  • Motor Controller

  • QTY 4: M5 Terminal Screws

  • QTY 4: M4 X 12mm Screws for securing the enclosure

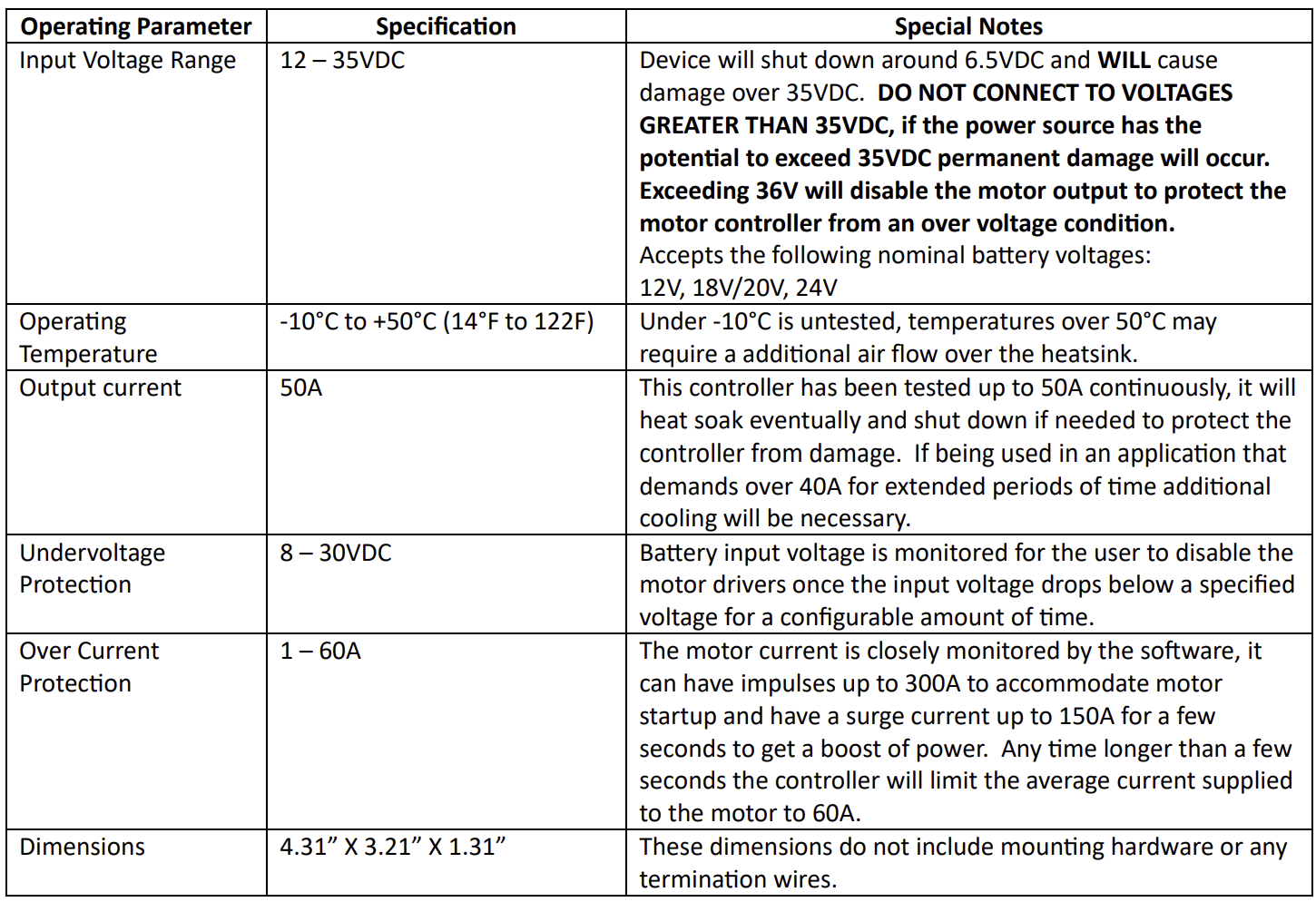

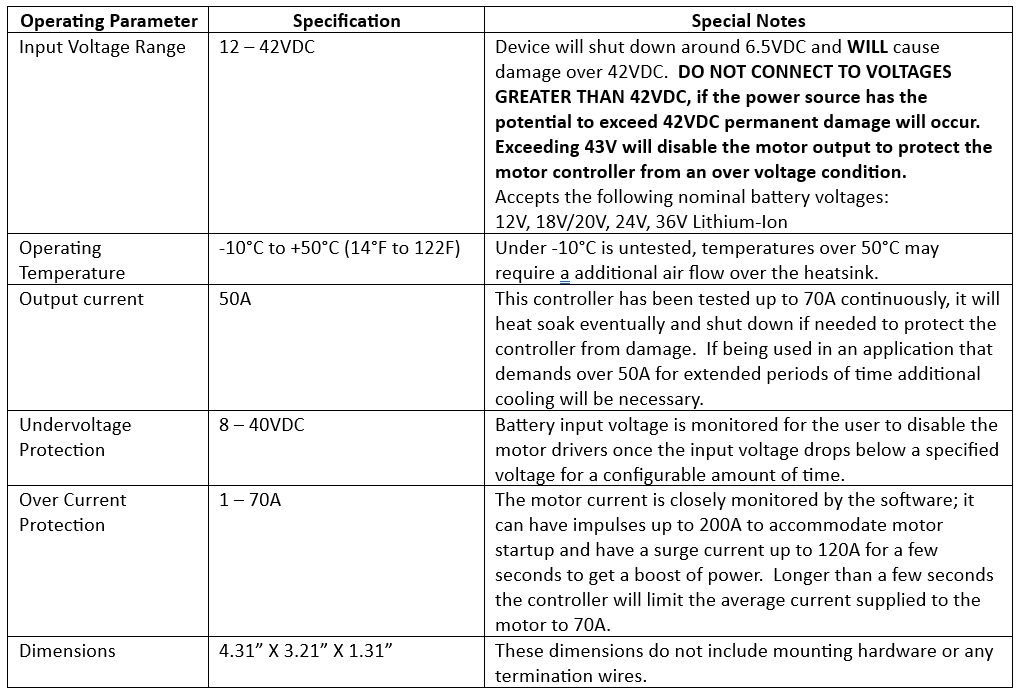

Detailed Specifications

This is a brushed motor controller designed for use in DIY projects including ride on kids toys (Power Wheels, Kid Traxx, Peg Perego) and robotic projects. It was been tested with many different 550, 775, 887, 895, MY1016 sized DC motors.

Speed Controller Manual
